YIHUA 938D Portable Tweezers Soldering Station

262.00

SKU: 3256806675633345 Category: Tools & Accessories

Hign-concerned Chemical: None
Is Smart Device: No
Origin: Mainland China
Dimensions: 37*17.5*8 cm
Model Number: YIHUA 938D tweezers Soldering Iron Station
Input Voltagle: 110V~240V optional
Output Temperature: 200~480
Brand Name: YIHUA
Temperature Stability: 2 (static state)
Certification: CE,FCC
Output Voltage: 120W Soldering Iron Station

Pre-sale Notice

US: 110V

EU: 220V-240V

AU: 240V

UK: 230V

Welding two soldering joints by once, double efficiency

Model: 938D (Portable)
Parameter:

Rated voltage range: 220V～240v/AC,50Hz

Maximum power: 240w

Rated power: 44w

Main unit dimensions: L138xW51xH33mm ±5mm

operating ambient temperature: 0℃～40℃/32°F～104°F

Temperature range: 200℃~480℃/392°F～896°F

Display: LED Nixie Tube

Tip to ground resistance: <2 Ohms

Function:

1. Fahrenheit/Celsius temperature conversion, satisfy the different need

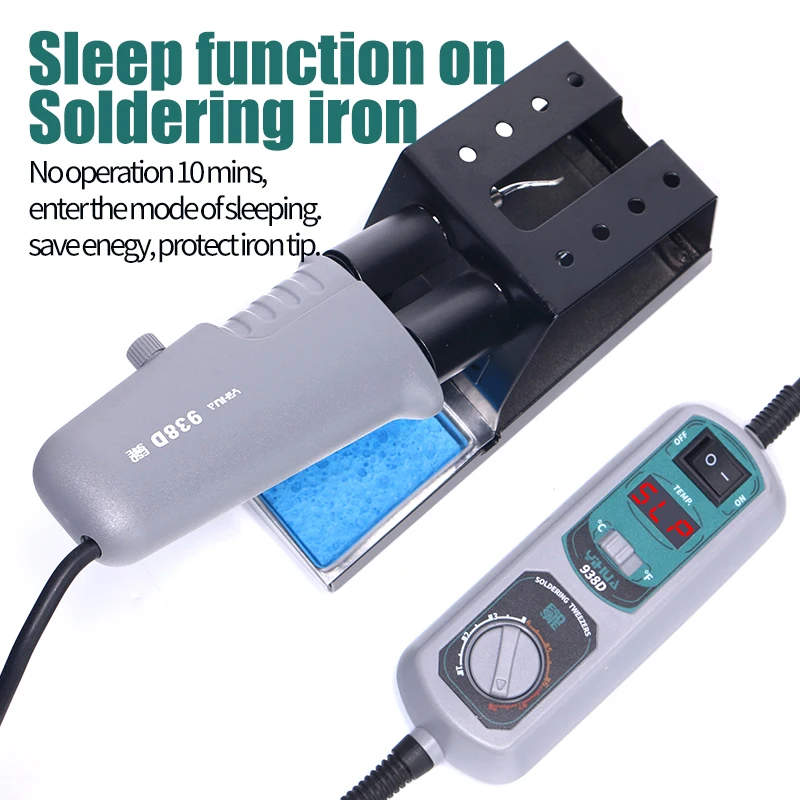

2. 10 mins auto-sleep, ensure safety, reduce the possibility of tips oxidation, prolong the use life of tips

3. light and portable, with one hand to handle it

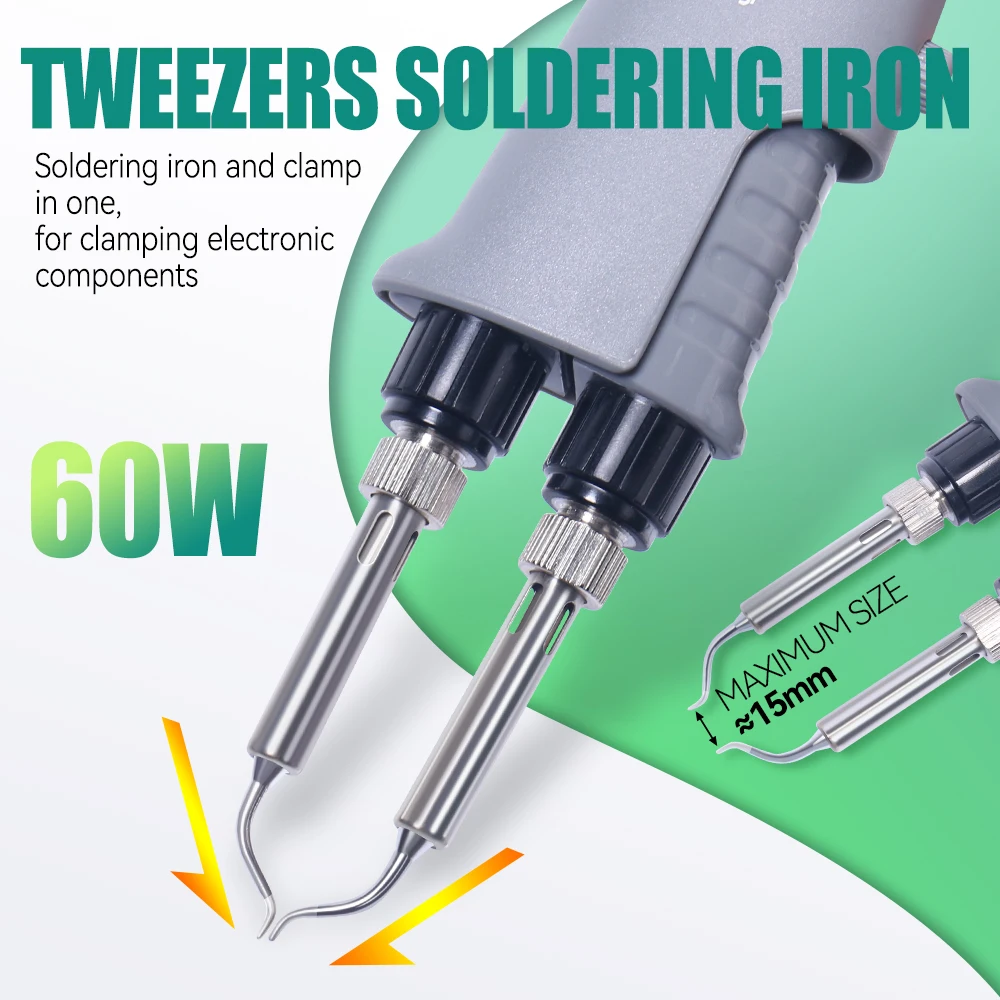

4. heating up fast, 60W heating element,100-480 °C

5. more precise, PID microcomputer temperature control

6. energy-saving, 10 mins iron sleep

How to use:

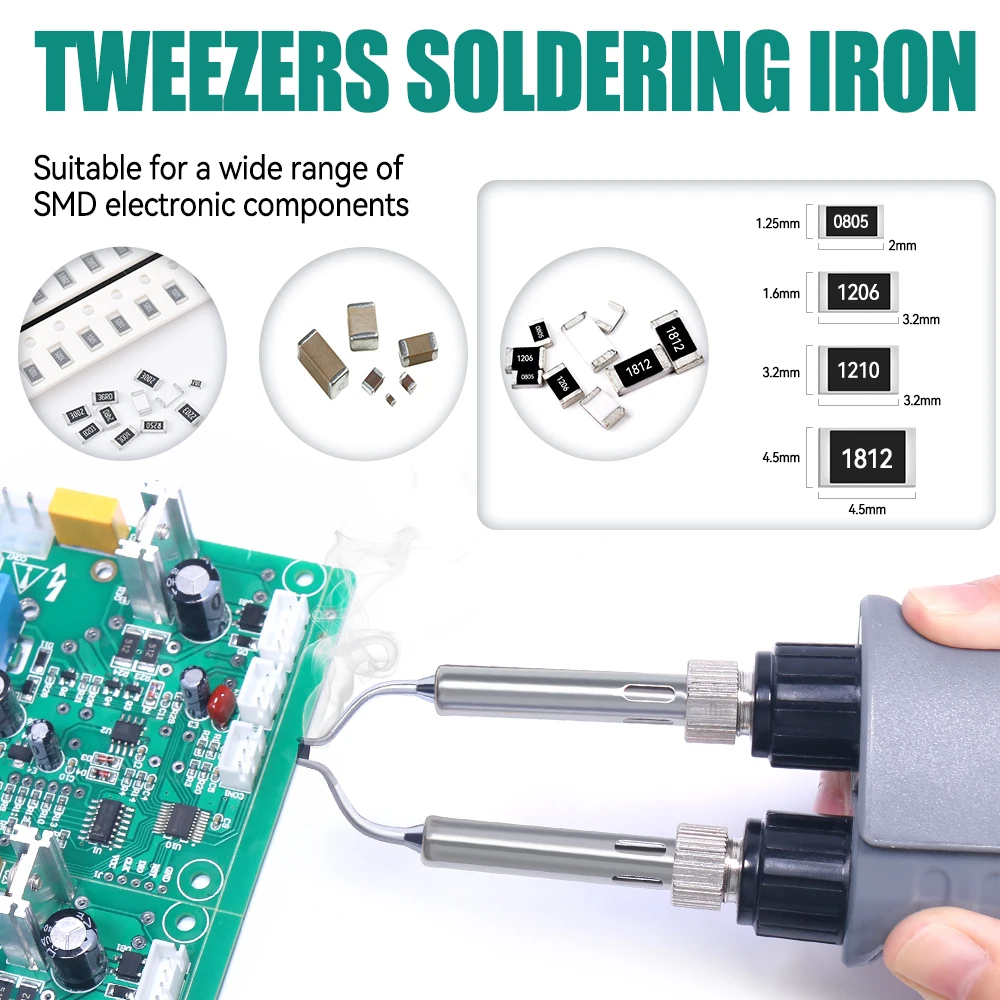

Suitable for soldering and desoldering applications on a broad range of SMD and Through-Hole components. This unit is especially great for manufacturing assembly lines, 2 solder joints can be worked on at the some time to provide high operation efficiency.

What’s in the box：

1. YIHUA938D Portable electric soldering iron

2. Tweezer soldering iron tips (1 pair)

3. Cleaning ball 08B (1 pcs)

4. Tubular soldering wire (1.0mm) (1 pcs)

5. Tweezer (1 pcs)
