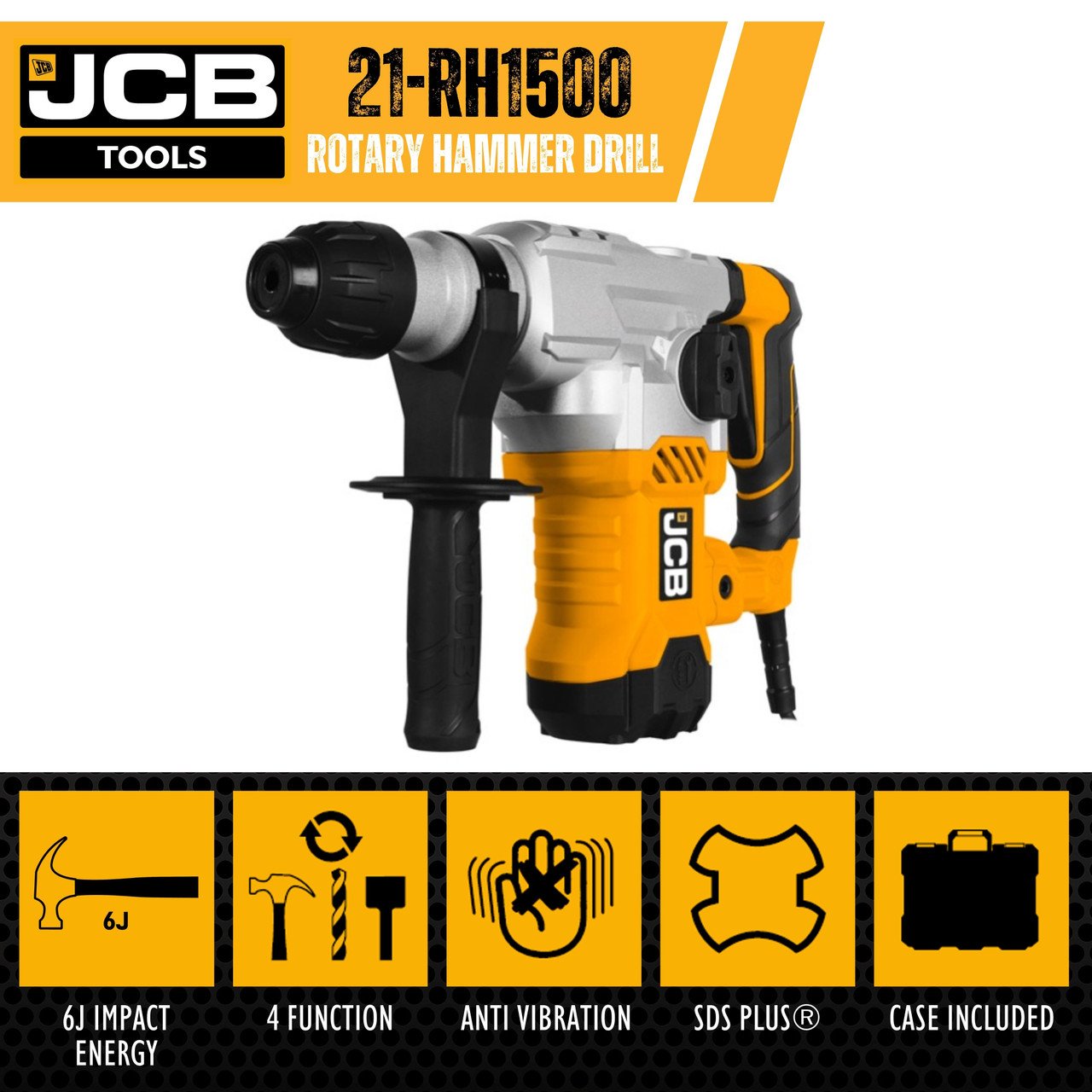

Engineered for versatility, the JCB-RH1500-SDSM functions as a rotary hammer and demolition tool. With a 1500W motor, 150–305 rpm drilling speed, and 1380–2760 bpm hammer rate, it’s ideal for drilling and chiseling in concrete and masonry. Equipped with soft-start, anti-vibration handle, and shock absorption, it delivers comfort and precision. Supplied with grease, carbon brushes, and a BMC case, it’s a reliable job site companion.
📌 Product Details
| Attribute |
Value |
Attribute |
Value |
| UK Model No. |
JCB-RH1500-SDSM |
Product Name |
Rotary Hammer |
| Product Weight (without packaging) |
10.5 KGS |
Product Weight (with packaging) |
17.0 KGS |
| Product Dimension (L x H x W, without packaging) |
56 × 25 × 13 cm |
Product Dimension (L x H x W, with packaging) |
64 × 44 × 14.5 cm |
📌 Technical Data
| Attribute |
Value |
Attribute |
Value |
| Motor Type |
Brushed |
Trigger Lock-On |
No |
| Input Voltage |
220-240V |
Rotatable Rear Handle |
Yes |
| Input Frequency |
50/60Hz |
Overload Protection |
No |
| Insulation Class |
II |
Cable Length |
3m |
| Input Power |
1500W |
IP Rating |
IPX0 |
| Drilling Capacity (Wood) |
40mm |
Side Handle (Anti-Vibration) Included |
Yes |
| Drilling Capacity (Metal) |
13mm |
Pin Wrench Included |
N/A |
| Drilling Capacity (Concrete) |
38mm |
Adjustable Guard |
N/A |
| Impact Force |
6–25J |
Soft-start Device |
Yes |
| Impact Rate |
1380–2760/min |
Power-Off Protection |
No |
| Tool Holder Type |
SDS Max® |
Spindle Lock |
N/A |
| No-Load Speed |
150–305/min |
Switch Type |
Trigger |
📌 Noise and Vibration Information
| Attribute |
Value |
Attribute |
Value |
| A-Weighted Sound Pressure (LpA) |
95.1 dB(A) |
A-Weighted Sound Power (LwA) |
106.1 dB(A) |
| Vibration Emission Value (ah) |
15.16 m/s² |
Uncertainty (K) |
1.5 m/s² |
| Uncertainty (KpA & KWA) |
3 dB(A) & 3 dB(A) |
|
|
📌 Directive / Standard
| Attribute |
Value |
Attribute |
Value |
| EU Machinery Directive 2006/42/EC |
Yes |
EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU |
Yes |
| UK Electrical Equipment (Safety) Regulations 2016 No. 1101 |
Yes |
UK Electromagnetic Compatibility Regulations 2016 No. 1091 |
Yes |
| ROHS Legislation |
Yes |
PAHs Legislation |
Yes |
| Restricted/Reportable Substances (REACH) |
No |
WEEE Conformity |
Yes |
📌 Additional Information
| Attribute |
Value |
Attribute |
Value |
| Accessories 1 |
1pc Point chisel (SDS Max) |
Specification for Accessories 1 |
18 × 320 mm |
| Accessories 2 |
1pc Flat chisel (SDS Max) |
Specification for Accessories 2 |
18 × 320 mm |
| Accessories 3 |
1 set of Carbon brushes |
Specification for Accessories 3 |
– |
| Accessories 4 |
1pc Grease |
Specification for Accessories 4 |
– |
| Accessories 5 |
1pc Dust cover |
Specification for Accessories 5 |
– |
| Carry Case |
Yes (BMC) |
3,200.00
