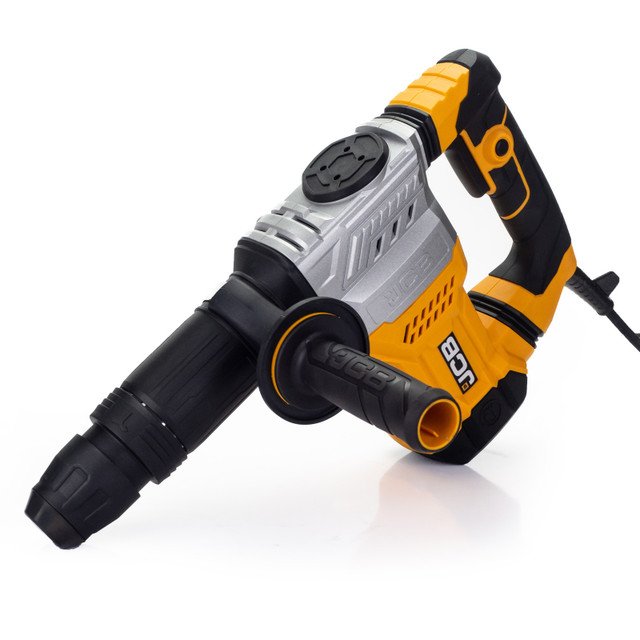

Compact yet powerful, the JCB-DH1300 delivers 15J of impact energy at 0–4100 bpm, making it ideal for chiseling and demolition jobs. Equipped with a brushed motor, multi-position side handle, and SDS Max® chuck, it ensures both control and performance. Supplied with point and flat chisels, grease, dust cover, and carbon brushes, this hammer is a complete kit for heavy-duty applications.
📌 Product Details
| Attribute |
Value |
Attribute |
Value |
| UK Model No. |
JCB-DH1300 |
Product Name |
Demolition Hammer |
| Product Weight (without packaging) |
6.5 KGS |
Product Weight (with packaging) |
10.5 KGS |
| Product Dimension (L x H x W, without packaging) |
47 × 25 × 11 cm |
Product Dimension (L x H x W, with packaging) |
59 × 42 × 14 cm |
📌 Technical Data
| Attribute |
Value |
Attribute |
Value |
| Motor Type |
Brushed |
Trigger Lock-On |
No |
| Input Voltage |
220-240V |
Rotatable Rear Handle |
No |
| Input Frequency |
50/60Hz |
Overload Protection |
No |
| Insulation Class |
II |
Cable Length |
3m |
| Input Power |
1300W |
IP Rating |
IPX0 |
| Impact Force |
15J |
Side Handle (Anti-Vibration) Included |
Yes |
| Impact Rate |
0–4100/min |
Pin Wrench Included |
N/A |
| Variable Speed |
No |
Adjustable Guard |
N/A |
| Tool Holder Type |
SDS Max® |
Soft-start Device |
Yes |
| Switch Type |
Trigger |
Spindle Lock |
N/A |
📌 Noise and Vibration Information
| Attribute |
Value |
Attribute |
Value |
| A-Weighted Sound Pressure (LpA) |
92.3 dB(A) |
A-Weighted Sound Power (LwA) |
103.3 dB(A) |
| Vibration Emission Value (ah) |
13.56 m/s² |
Uncertainty (K) |
1.5 m/s² |
| Uncertainty (KpA & KWA) |
3 dB(A) & 3 dB(A) |
|
|
📌 Directive / Standard
| Attribute |
Value |
Attribute |
Value |
| EU Machinery Directive 2006/42/EC |
Yes |
EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU |
Yes |
| UK Electrical Equipment (Safety) Regulations 2016 No. 1101 |
Yes |
UK Electromagnetic Compatibility Regulations 2016 No. 1091 |
Yes |
| ROHS Legislation |
Yes |
PAHs Legislation |
Yes |
| Restricted/Reportable Substances (REACH) |
No |
WEEE Conformity |
Yes |
📌 Additional Information
| Attribute |
Value |
Attribute |
Value |
| Accessories 1 |
1pc Point chisel (SDS Max) |
Specification for Accessories 1 |
18 × 320 mm |
| Accessories 2 |
1pc Flat chisel (SDS Max) |
Specification for Accessories 2 |
18 × 320 mm |
| Accessories 3 |
1 set of Carbon brushes |
Specification for Accessories 3 |
– |
| Accessories 4 |
1pc Grease |
Specification for Accessories 4 |
– |
| Accessories 5 |
1pc Dust cover |
Specification for Accessories 5 |
– |
| Carry Case |
Yes (BMC) |
