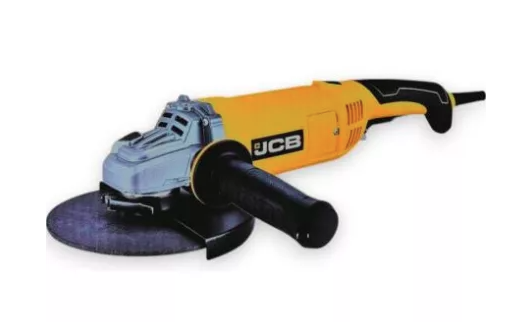

For maximum power and performance, the JCB-AG230 is the ultimate choice. With a 2600W motor and 230mm disc capacity, it’s designed for the toughest industrial cutting and grinding jobs. Running at 6,600 RPM with a rotatable rear handle, it offers comfort during extended use. Features include soft-start, spindle lock, adjustable guard, and anti-vibration handle. Supplied with a 230mm grinding wheel and pin wrench, this grinder is built to deliver heavy-duty results.
📌 Product Details
| Attribute |
Value |
Attribute |
Value |
| Product Name |
Angle Grinder |
UK Model No. |
JCB-AG2600-230-230V |
| Product Weight (without packaging) |
6.3 KGS |
Product Weight (with packaging) |
7.0 KGS |
| Product Dimension (L x H x W, without packaging) |
57 × 15 × 24.5 cm |
Product Dimension (L x H x W, with packaging) |
58 × 17.5 × 27 cm |
📌 Technical Data
| Attribute |
Value |
Attribute |
Value |
| Motor Type |
Brushed |
Trigger Lock-On |
No |
| Input Voltage |
220-240V |
Rotatable Rear Handle |
Yes |
| Input Frequency |
50/60Hz |
Overload Protection |
No |
| Insulation Class |
II |
Cable Length |
3m |
| Input Power |
2600W |
IP Rating |
IPX0 |
| Input Current |
– |
Side Handle (Anti-Vibration) Included |
Yes |
| No-Load Speed |
6600/min |
Pin Wrench Included |
Yes |
| Variable Speed |
No |
Adjustable Guard |
Yes |
| Spindle Thread Size |
M14 |
Soft-start Device |
Yes |
| Disc Capacity |
230mm |
Power-Off Protection |
No |
| Switch Type |
Trigger switch |
Spindle Lock |
Yes |
📌 Noise and Vibration Information
| Attribute |
Value |
Attribute |
Value |
| A-Weighted Sound Pressure (LpA) |
98.6 dB(A) |
A-Weighted Sound Power (LwA) |
106.6 dB(A) |
| Vibration Emission Value (ahAG) |
6.186 m/s² |
Uncertainty (K) |
K = 1.5 m/s² |
| Uncertainty (KpA & KWA) |
3 dB(A) & 3 dB(A) |
|
|
📌 Directive / Standard
| Attribute |
Value |
Attribute |
Value |
| EU Machinery Directive 2006/42/EC |
Yes |
EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU |
Yes |
| UK Electrical Equipment (Safety) Regulations 2016 No. 1101 |
Yes |
UK Electromagnetic Compatibility Regulations 2016 No. 1091 |
Yes |
| ROHS Legislation |
Yes |
PAHs Legislation |
Yes |
| Restricted/Reportable Substances (REACH) |
No |
WEEE Conformity |
Yes |
📌 Additional Information
| Attribute |
Value |
Attribute |
Value |
| Accessories 1 |
1pc JCB Anti-Vibration side handle |
Specification for Accessories 1 |
– |
| Accessories 2 |
1pc 230mm grinding wheel |
Specification for Accessories 2 |
– |
| Accessories 3 |
1pc Pin Wrench |
Specification for Accessories 3 |
– |
753.00
