The JCB-AG1400 combines performance with control. Powered by a 1400W motor and delivering up to 12,200 RPM, this grinder features variable speed adjustment for precision across different materials. Equipped with soft-start, overload protection, and power-off protection, it ensures safety and durability. The 125mm disc capacity, side handle, and supplied accessories make it a versatile tool for metalworking, cutting, and finishing.

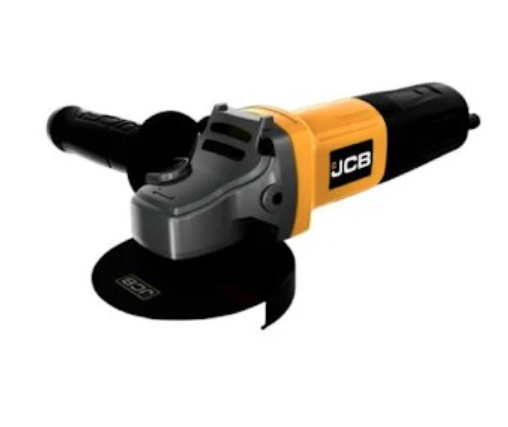

JCB-AG1400 – 1400W 125mm Angle Grinder (Brushed Motor)
📌 Product Details
| Attribute |
Value |
Attribute |
Value |
| Product Name |
Angle Grinder |
Model No. |
JCB-AG1400 |
| Product Weight (without packaging) |
2.3 KGS |
Product Weight (with packaging) |
2.7 KGS |
| Product Dimension (L x H x W, without packaging) |
36 × 11 × 14 cm |
Product Dimension (L x H x W, with packaging) |
36 × 12 × 15.5 cm |
📌 Technical Data
| Attribute |
Value |
Attribute |
Value |
| Motor Type |
Brushed |
Trigger Lock-On |
No |
| Input Voltage |
220-240V |
Rotatable Rear Handle |
No |
| Input Frequency |
50/60Hz |
Overload Protection |
No |
| Insulation Class |
II |
Cable Length |
3m |
| Input Power |
1400W |
IP Rating |
IPX0 |
| Input Current |
– |
Side Handle (Anti-Vibration) Included |
Yes |
| No-Load Speed |
12200/min |
Pin Wrench Included |
Yes |
| Variable Speed |
Yes |
Adjustable Guard |
Yes |
| Spindle Thread Size |
M14 |
Soft-start Device |
Yes |
| Disc Capacity |
125mm |
Power-Off Protection |
Yes |
| Switch Type |
Side switch |
Spindle Lock |
Yes |
📌 Noise and Vibration Information
| Attribute |
Value |
Attribute |
Value |
| A-Weighted Sound Pressure (LpA) |
89.3 dB(A) |
A-Weighted Sound Power (LwA) |
100.3 dB(A) |
| Vibration Emission Value (ahAG) |
9.379 m/s² |
Uncertainty (K) |
K = 1.5 m/s² |
| Uncertainty (KpA & KWA) |
3 dB(A) & 3 dB(A) |
|
|
📌 Directive / Standard
| Attribute |
Value |
Attribute |
Value |
| EU Machinery Directive 2006/42/EC |
Yes |
EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU |
Yes |
| UK Electrical Equipment (Safety) Regulations 2016 No. 1101 |
Yes |
UK Electromagnetic Compatibility Regulations 2016 No. 1091 |
Yes |
| ROHS Legislation |
Yes |
PAHs Legislation |
Yes |
📌 Additional Information
| Attribute |
Value |
Attribute |
Value |
| Accessories 1 |
1pc JCB Anti-Vibration side handle |
Specification for Accessories 1 |
– |
| Accessories 2 |
1pc 125mm grinding wheel |
Specification for Accessories 2 |
– |
| Accessories 3 |
1pc Pin Wrench |
Specification for Accessories 3 |
– |
